Arrow™ UHFAuD - NanoWorld®

Type: Arrow™ UHFAuD

Ultra High Frequency – Au Coating (Detector Side)

Cantilever Data	Value	Range*
Resonance Frequency	2000 kHz	700 - 2000 kHz
Force Constant	Info
Length	35 µm
Mean Width	42 µm
Thickness	0.7 µm	0.5 - 0.9 µm

*Typical values

How to optimize AFM scan parameters

How to use on Bruker® AFM systems

Arrow™ UHF More images

Product Description

Optimized positioning through maximized AFM tip visibility

NanoWorld® Arrow™ ultra-high frequency AFM probes are capable of resonating with a very high frequency (typically around 2.0 MHz). This AFM probe type combines outstanding sensitivity with fast scanning ability. All AFM probes of the Arrow™ series are made from monolithic silicon which is highly doped to dissipate static charge. They are chemically inert and offer a high mechanical Q-factor for high sensitivity. The AFM probes feature an AFM cantilever with a triangular free end and a tetrahedral AFM tip with a height of 3 µm.

Additionally, this AFM probe offers an AFM tip radius of curvature of less than 10 nm.

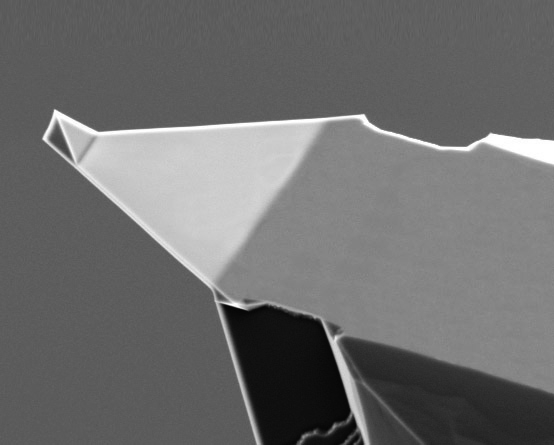

The unique Arrow™ shape with the AFM tip position at the very end of the AFM cantilever allows easy positioning of the AFM tip on the area of interest.

If needed, specific AFM cantilever thicknesses can be selected within very narrow tolerances for an additional fee.

A trapezoidal cross section of the AFM cantilever and therefore 30% wider (e.g. NCH) AFM cantilever detector side result in easier and faster laser adjustment. Additionally, because there is simply more space to place and reflect the laser beam, a higher SUM signal is reached.

Tip shape: Arrow

Coating: Reflective Gold

Gold Reflex Coating

The gold reflex coating consists of a 35 nm thick gold layer deposited on the detector side of the AFM cantilever which enhances the reflectance of the laser beam by a factor of 2.5. Furthermore it prevents light from interfering within the AFM cantilever.

As the coating is almost stress-free the bending of the AFM cantilever due to stress is less than 2 degrees.

Order Codes

Order Code	Quantity	Data Sheet
ARROW-UHFAuD-10	10	Nominal values
ARROW-UHFAuD-20	20	Nominal values

NanoWorld® Arrow™ Ultra High Frequency AFM Probes (UHF) Screencast

Subscribe to NanoWorld® Youtube Channel

Guaranteed values

Bruker® is a trademark of Bruker Corporation

Scientific publications mentioning use of this AFM probe

Ulrich Ramach, Jinhoon Lee, Florian Altmann, Martin Schussek, Matteo Olgiati, Joanna Dziadkowiec, Laura L. E. Mears, Alper T. Celebi, Dong Woog Lee and Markus Valtinera
Real-time visualisation of ion exchange in molecularly confined spaces where electric double layers overlap
Faraday Discuss., 2023, Accepted Manuscript
DOI: https://doi.org/10.1039/D3FD00038A

Benjamin A. Legg, Sang Soo Lee, Juan C. Garcia, Hakim Iddir, Tim T. Fister and Vijayakumar Murugesan
Uptake of Pb and the Formation of Mixed (Ba,Pb)SO4 Monolayers on Barite During Cyclic Exposure to Lead-Containing Sulfuric Acid
ACS Applied Materials & Interfaces 2023, 15, 8, 10593–10605
DOI: https://doi.org/10.1021/acsami.2c18399

Anne-Charlotte Nellissen, Roelof Steeno, Jonathan B.F. Vandenwijngaerden, Steven De Feyter, Stijn F.L. Mertens and Mark Van der Auweraer
The behavior of thiacarbocyanine dyes on the surface of few-layered hexagonal boron nitride
Dyes and Pigments, Volume 208, January 2023, 110790
DOI: https://doi.org/10.1016/j.dyepig.2022.110790

Zibo Li, Qian Liu, Deliang Zhang, Yin Wang, Yuge Zhang a, Qiang Li and Mingdong Dong
Probing the hydration friction of ionic interfaces at the atomic scale
Nanoscale Horizons 2022,7, 368-375
DOI: https://doi.org/10.1039/D1NH00564B

Teresa Liberto, Andreas Nenning, Maurizio Bellotto, Maria Chiara Dalconi, Dominik Dworschak, Lukas Kalchgruber, Agathe Robisson, Markus Valtiner and Joanna Dziadkowiec
Detecting Early-Stage Cohesion Due to Calcium Silicate Hydration with Rheology and Surface Force Apparatus
Langmuir 2022, 38, 48, 14988–15000
DOI: https://doi.org/10.1021/acs.langmuir.2c02783

Fulvio Di Lorenzo, Tobias Arnold and Sergey V. Churakov
Pb2+ Uptake by Magnesite: The Competition between Thermodynamic Driving Force and Reaction Kinetics
Minerals 2021, 11(4), 415
DOI: https://doi.org/10.3390/min11040415

Shaoqiang Su, Igor Siretanu, Dirk van den Ende, Bastian Mei, Guido Mul, Frieder Mugele
Facet-Dependent Surface Charge and Hydration of Semiconducting Nanoparticles at Variable pH
Advanced Materials, Volume 33, Issue 52, December 29, 2021, 2106229
DOI: https://doi.org/10.1002/adma.202106229

Aaron Elbourne, Nastaran Meftahi, Tamar L. Greaves, Christopher F.McConville, Gary Bryant, Saffron J.Bryant, Andrew J.Christofferson
Nanostructure of a deep eutectic solvent at solid interfaces
Journal of Colloid and Interface Science, Volume 591, June 2021, Pages 38-51
DOI: https://doi.org/10.1016/j.jcis.2021.01.089
https://www.researchgate.net/profile/Aaron-Elbourne/publication/348945316_Nanostructure_of_a_Deep_Eutectic_Solvent_at_Solid_Interfaces/links/6018733b92851c2d4d0d981a/Nanostructure-of-a-Deep-Eutectic-Solvent-at-Solid-Interfaces.pdf

Evgeny M. Alexeev, Nic Mullin, Pablo Ares, Harriet Nevison-Andrews, Oleksandr Skrypka, Tillmann Godde, Aleksey Kozikov, Lee Hague, Yibo Wang, Kostya S. Novoselov, Laura Fumagalli, Jamie K. Hobbs, and Alexander I. Tartakovskii
Emergence of Highly Linearly Polarized Interlayer Exciton Emission in MoSe2/WSe2 Heterobilayers with Transfer-Induced Layer Corrugation
ACS Nano 2020, 14, 9, 11110–11119
DOI: https://doi.org/10.1021/acsnano.0c01146
https://arxiv.org/pdf/2004.05624.pdf

Sibel EbruYalcin, Benjamin A.Legg, MerveYeşilbaş, Nikhil S.Malvankar, Jean-FrançoisBoily
Direct observation ofanisotropic growth ofwater films onminerals driven by defects andsurface tension
Science Advances 2020; 6 : eaaz9708
DOI: 10.1126/sciadv.aaz9708
https://advances.sciencemag.org/content/advances/6/30/eaaz9708.full.pdf

William Foster, Keisuke Miyazawa, Takeshi Fukuma, Halim Kusumaatmaja and Kislon Voϊtchovsky
Self-assembly of small molecules at hydrophobic interfaces using group effect
Nanoscale, 2020, 12, 5452-5463
DOI: 10.1039/C9NR09505E

Simone R. van Lin, Kara K. Grotz, Igor Siretanu, Nadine Schwierz, and Frieder Mugele
Ion-Specific and pH-Dependent Hydration of Mica–Electrolyte Interfaces
Langmuir 2019, 35, 17, 5737–5745
DOI: https://doi.org/10.1021/acs.langmuir.9b00520

Daniel E. Acevedo-Cartagena, Jiaxin Zhu, Marta Kocun, Stephen S. Nonnenmann, and Ryan C. Hayward
Tuning Metastability of Poly(3-hexyl thiophene) Solutions to Enable in Situ Atomic Force Microscopy Imaging of Surface Nucleation
Macromolecules 2019, 52, 20, 7756–7761
DOI: https://doi.org/10.1021/acs.macromol.9b01547
https://www.osti.gov/pages/servlets/purl/1599593

Wenwen Cui, Xin Zhang, Carolyn I. Pearce, Ying Chen, Shuai Zhang, Wen Liu, Mark H. Engelhard, Libor Kovarik, Meirong Zong, Hailin Zhang, Eric D. Walter, Zihua Zhu, Steve M. Heald, Micah P. Prange, James J. De Yoreo, Shili Zheng, Yi Zhang, Sue B. Clark, Ping Li*, Zheming Wang*, and Kevin M. Rosso
Cr(III) Adsorption by Cluster Formation on Boehmite Nanoplates in Highly Alkaline Solution
Environmental Science & Technology 2019, 53, 18, 11043–11055
DOI: https://doi.org/10.1021/acs.est.9b02693
https://www.osti.gov/pages/servlets/purl/1574310

Joanne E. Stubbs, Benjamin A. Legg, Sang Soo Lee, Przemyslaw Dera, James J. De Yoreo, Paul Fenter, and Peter J. Eng
Epitaxial Growth of Gibbsite Sheets on the Basal Surface of Muscovite Mica
Journal of Physical Chemistry C 2019, 123, 45, 27615–27627
DOI: https://doi.org/10.1021/acs.jpcc.9b08219
https://www.osti.gov/servlets/purl/1580747

Fulvio Di Lorenzo, Cristina Ruiz-Agudo and Sergey V. Churakov
The key effects of polymorphism during PbII uptake by calcite and aragonite
CrystEngComm, 2019,21, 6145-6155
DOI: https://doi.org/10.1039/C9CE01040H

William Trewby, Jordi Faraudo and Kislon Voïtchovsky
Long-lived ionic nano-domains can modulate the stiffness of soft interfaces
Nanoscale, 2019, 11, 4376-4384
DOI: 10.1039/C8NR06339G

Claudia Merola, Hsiu‐Wei Cheng, Dominik Dworschak, Ching‐Shun Ku, Ching‐Yu Chiang, Frank Uwe Renner and Markus Valtiner
Nanometer Resolved Real Time Visualization of Acidification and Material Breakdown in Confinement
Advanced Materials Interfaces, Volume6, Issue10, May 23, 2019, 1802069
DOI: https://doi.org/10.1002/admi.201802069
https://onlinelibrary.wiley.com/doi/pdfdirect/10.1002/admi.201802069

Yuxi Guo, Igor Siretanu, Yihe Zhang, Bastian Mei, Xiaowei Li, Frieder Mugele, Hongwei Huang and Guido Mul
pH-Dependence in facet-selective photo-deposition of metals and metal oxides on semiconductor particles
Journal of Materials Chemistry A, 2018,6, 7500-7508
DOI: https://doi.org/10.1039/C8TA00781K

William Foster, Juan A. Aguilar, Halim Kusumaatmaja, and Kislon Voϊtchovsky
In Situ Molecular-Level Observation of Methanol Catalysis at the Water–Graphite Interface
ACS Applied Materials Interfaces 2018, 10, 40, 34265–34271
DOI: https://doi.org/10.1021/acsami.8b12113

Maria Ricci, William Trewby, Clodomiro Cafolla and Kislon Voïtchovsky
Direct observation of the dynamics of single metal ions at the interface with solids in aqueous solutions
Nature Scientific Reports volume 7, Article number: 43234 (2017)
DOI: https://doi.org/10.1038/srep43234

Kumar, M. P. Andersson, D. van den Ende, F. Mugele, and I. Siretanu
Probing the Surface Charge on the Basal Planes of Kaolinite Particles with High Resolution Atomic Force Microscopy
Langmuir 2017, 33, 50, 14226–14237
DOI: https://doi.org/10.1021/acs.langmuir.7b03153

William Trewby , Duncan Livesey and Kislon Voïtchovsky
Buffering agents modify the hydration landscape at charged interfaces
Soft Matter, 2016, 12, 2642-2651
DOI: 10.1039/C5SM02445E

Roger Proksch, Marta Kocun, Donna Hurley, Mario Viani, Aleks Labuda, Waiman Meinhold, and Jason Bemis
Practical loss tangent imaging with amplitude-modulated atomic force microscopy
Journal of Applied Physics 119, 134901 (2016)
DOI: https://doi.org/10.1063/1.4944879
http://www.alekslabuda.com/sites/default/files/publications/[2016-03]%20Practical%20loss%20tangent%20imaging%20with%20AM-AFM.pdf

Jonathan Moffat, Victor J.Morris, Saphwan Al-Assaf, A. Patrick Gunning
Visualisation of xanthan conformation by atomic force microscopy
Carbohydrate Polymers, Volume 148, 5 September 2016, Pages 380-389
DOI: https://doi.org/10.1016/j.carbpol.2016.04.078

Kislon Voïtchovsky, Daniele Giofrè, Juan José Segura, Francesco Stellacci and Michele Ceriotti
Thermally-nucleated self-assembly of water and alcohol into stable structures at hydrophobic interfaces
Nature Communications volume 7, Article number: 13064 (2016)
DOI: https://doi.org/10.1038/ncomms13064

María D. Manrique-Juárez, Iurii Suleimanov, Edna M. Hernández, Lionel Salmon, Gábor Molnár, and Azzedine Bousseksou
In Situ AFM Imaging of Microstructural Changes Associated with The Spin Transition in [Fe(Htrz)2(Trz)](Bf4) Nanoparticles
Materials 2016, 9(7), 537
DOI: https://doi.org/10.3390/ma9070537

G Radicioni, R Cao, J Carpenter, A A Ford, T T Wang, Y Li and M Kesimer
The innate immune properties of airway mucosal surfaces are regulated by dynamic interactions between mucins and interacting proteins: the mucin interactome
Mucosal Immunology volume 9, pages1442–1454(2016)
DOI: https://doi.org/10.1038/mi.2016.27

Johannes Lützenkirchen,, Frank Heberling, Filip Supljika, Tajana Preocanin, Nikola Kallay, Florian Johann, Ludger Weisser and Peter J. Eng
Structure–charge relationship–the caseof hematite (001)
Faraday Discussions,2015,180,55
DOI: 10.1039/c4fd00260a

Juan José Segura, Aaron Elbourne, Erica J. Wanless, Gregory G. Warr, Kislon Voïtchovsky and Rob Atkin
Adsorbed and near surface structure of ionic liquids at a solid interface
Physical Chemistry Chemical Physics, 2013, 15, 3320-3328
DOI: 10.1039/C3CP44163F
